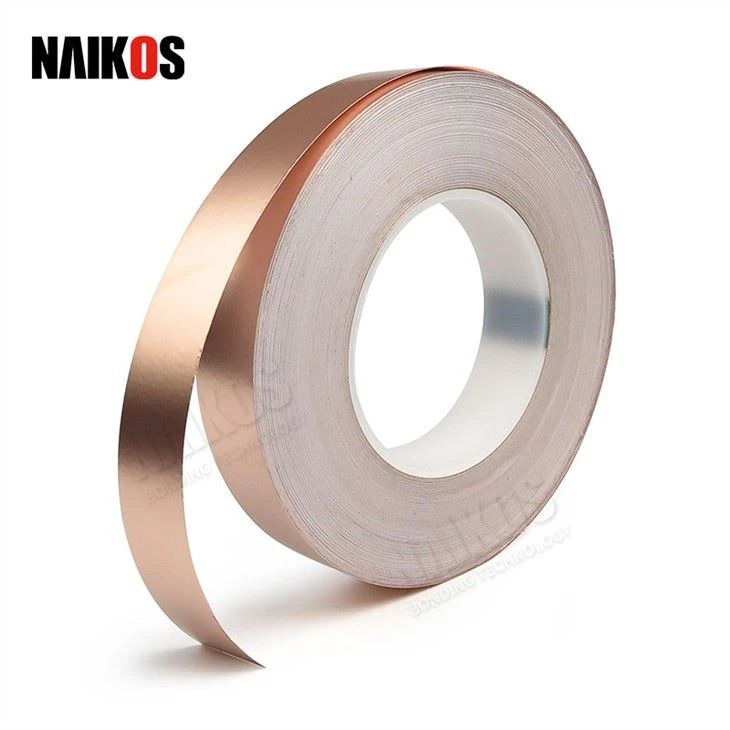

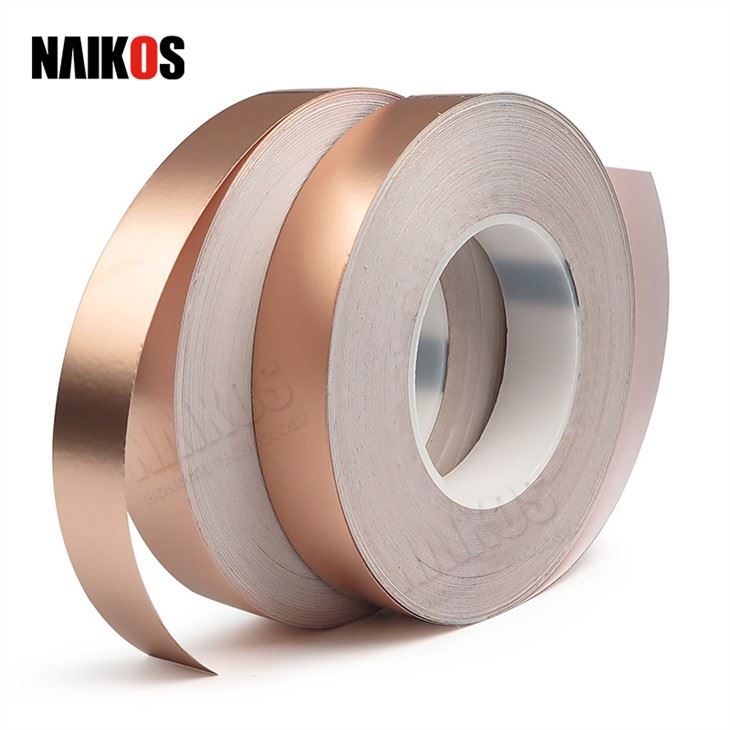

Product Description
Tinned tooj liab daim kab xev conductive nplaum rau soldering yog ib hom hlau daim kab xev, feem ntau yog siv nyob rau hauv electromagnetic shielding, hluav taws xob teeb liab shielding, thiab sib nqus teeb liab shielding. Cov teeb liab thaiv hluav taws xob feem ntau yog nyob ntawm qhov zoo tshaj plaws conductivity ntawm tooj liab nws tus kheej, thaum sib nqus shielding yuav tsum tau tooj liab daim kab xev. Nto conductive nplaum kom ua tiav cov nyhuv ntawm cov hlau nplaum tiv thaiv, yog li nws yog dav siv hauv cov xov tooj ntawm tes, phau computers, thiab lwm yam khoom siv hluav taws xob.
Nta
Kev txuag hluav taws xob, hluav taws xob rwb thaiv tsev
Waterproof, txias, thiab kub tsis kam
EMI tiv thaiv
Zoo elongation
Copper daim kab xev conductive nplaum Muaj zog adhesion thiab yooj yim tev tawm
Copper daim kab xev rau soldering UV kuj, nplaim retardant
Kev tsim kho
Copper Foil Conductive Adhesive Daim Ntawv Tso Cai Dawb |  |
Lub cev muaj zog
Yam khoom | Chav tsev | Tus nqi | Nco tseg |
180 degree Peeling zog | Kg/ntu | Ntau dua lossis sib npaug rau 0.8 | 25 degree, 2kg / in cohered, 300mm / feeb tev |
Rov qab Khoom siv | feem pua | 99.95 | Cu |
Rov qab Thickness | mm | 0.035±0.002 | |
Adhesive | Acrylic | ||
Adhesive Thickness | mm | {{0}}.035 ntxiv rau 0.005 | |
Tag nrho Thickness | mm | 0.07 | |
tuav lub hwj chim | feeb | Ntau dua lossis sib npaug rau 1440 | 2kg / nti, rau SUS304Plate |
Nto impedance | Ω/inch | Tsawg dua lossis sib npaug rau 0.05 | 25.4mm 25.4mm Mitsubishi LO |
Kev tiv thaiv zoo | DB | 5588 | 100MHz-1000MHz |
Thaum tshav kub kub Resistance | degree | -10 rau 120 | |
Tensile zog | kg / hli | 5 | |
Elongation | feem pua | 67 | |
Adhesion | kg/25 hli | 1.5 | |
Insulating Resistance | / | ||
ADHESION PROPERTY (Test Environment: 25 degree ,65RH Test Method: ASTM D1000) | |||
Adhesive | Acrylic Pressure Sensitive Adhesive | ||
Solvent | Ethyl Acetate | ||
viscosity | (BROOKFIELD LVF NO.4.@25 degree) 9000 plus 1000 CPS | ||
Cov ntsiab lus | (150 degree 15Min)401 percent | ||
Cov ntsiab lus coj | Silver, Nickel, Cu | ||
Thawj Tack | (J.DOW METHOD) 1.5kg / 25mm | ||
Lub sij hawm ntev Adhesion | (PSTC-7) 1440 Min / nti | ||
Thaum tshav kub kub Resistance | '-10 degree -120 degree | ||
Kev coj ua | {{0}}.030.06 onms/sg in(Less tshaj los yog sib npaug rau 0.2ohmshsq nti ntawm 1Kg) |
Nco tseg: Cov ntaub ntawv thiab cov ntaub ntawv saum toj no yuav tsum raug suav hais tias yog tus sawv cev lossis tus kheej nkaus xwb thiab yuav tsum tsis txhob siv.
Daim ntawv thov
Tinned tooj liab daim kab xev conductive nplaum rau soldering muaj ib tug zoo meej tov rau ceev thiab ceev kev daws teeb meem ntawm feem ntau cov teeb meem nyob rau hauv guitar crafts, ua teb, soldering tsom iav, hluav taws xob kho, siv nws los qhwv cables, tshuab Cheebtsam, kev sib txuas, thiab kiv cua, extendable kav hlau txais xov, computer Cheebtsam. , thiab ntau dua.

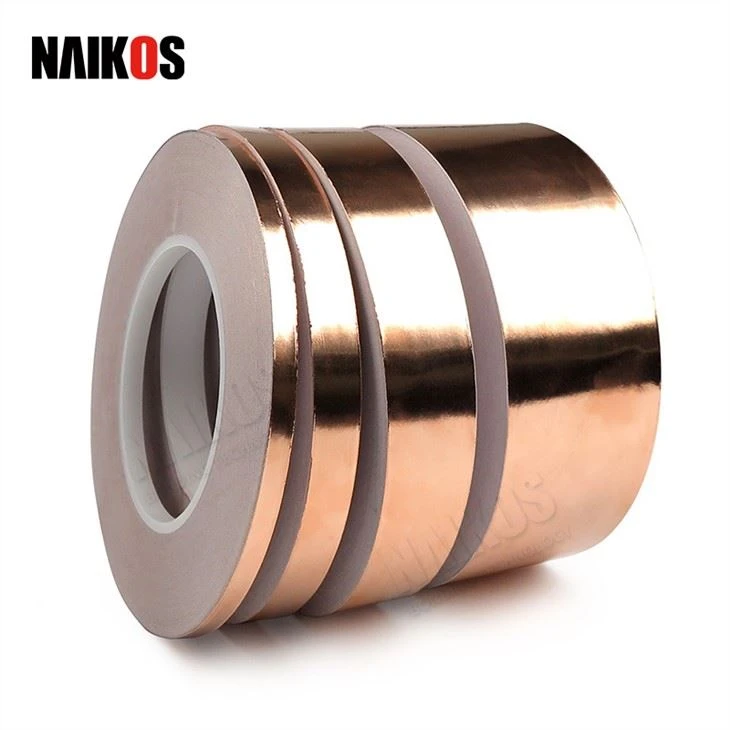

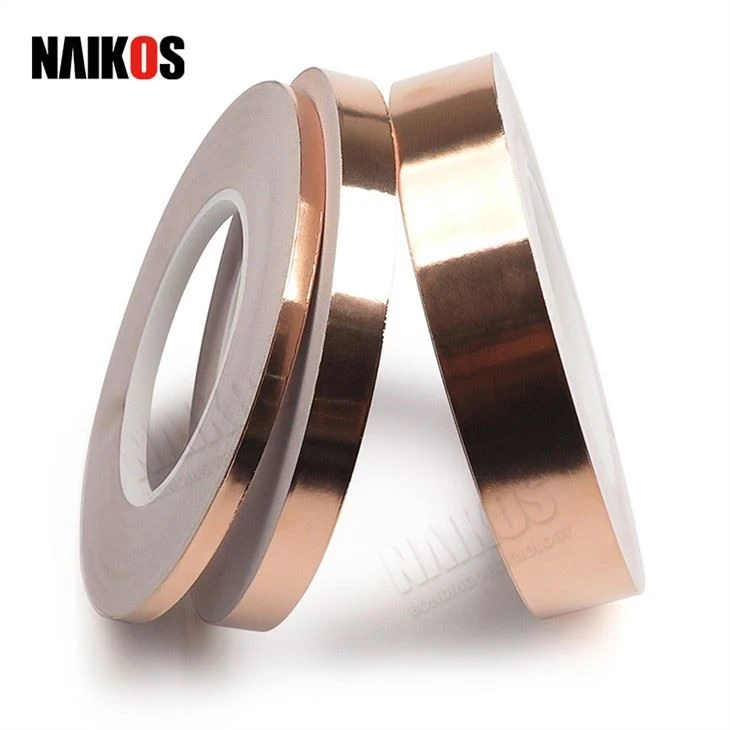

Muaj Qhov Loj
Dav: Qhov siab tshaj plaws 380mm. (Tau Customized)
Ntev: 50m (Tshwj xeeb tuaj yeem kho tau).
Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.
